DuraVent DuraChimney II 30-Degree Elbow Kit - 8" Chimney

Name: DuraVent DuraChimney II Chimney 30-Degree Elbow Kit
Brand: DuraVent
SKU: 8DCA-E30K
Price: 463.98 USD
Availability: InStock

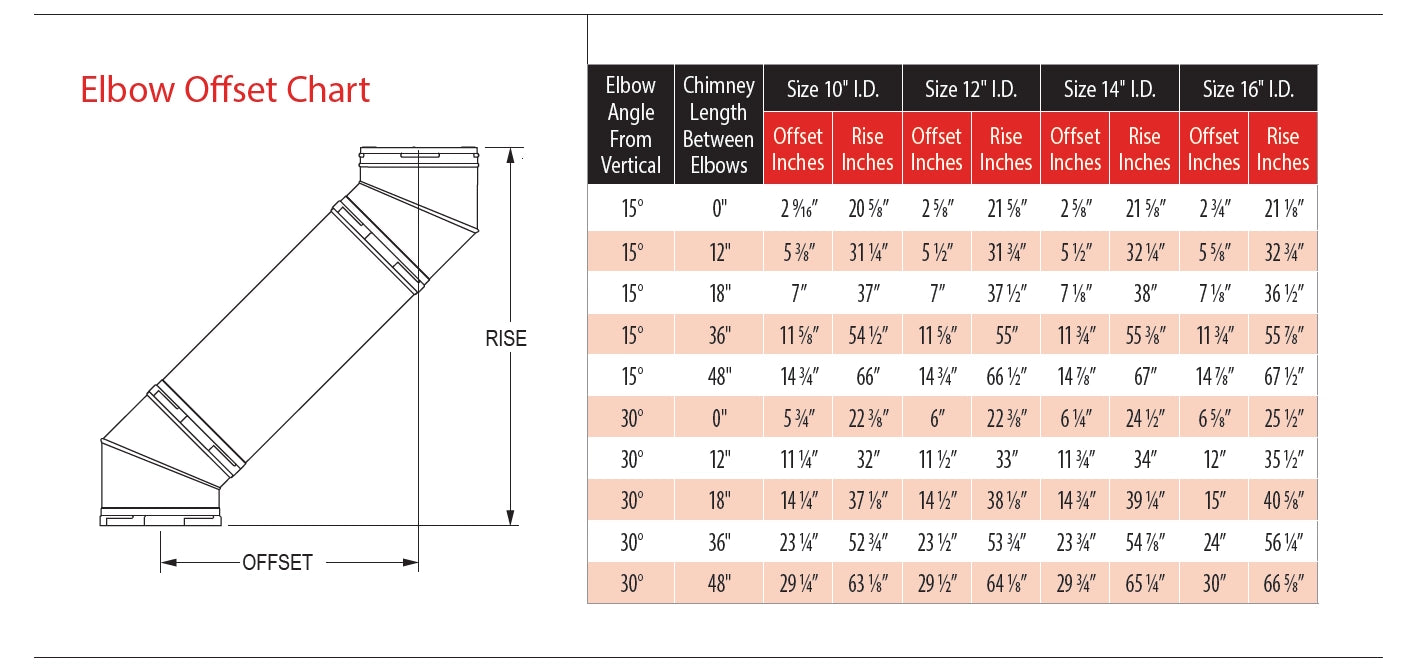

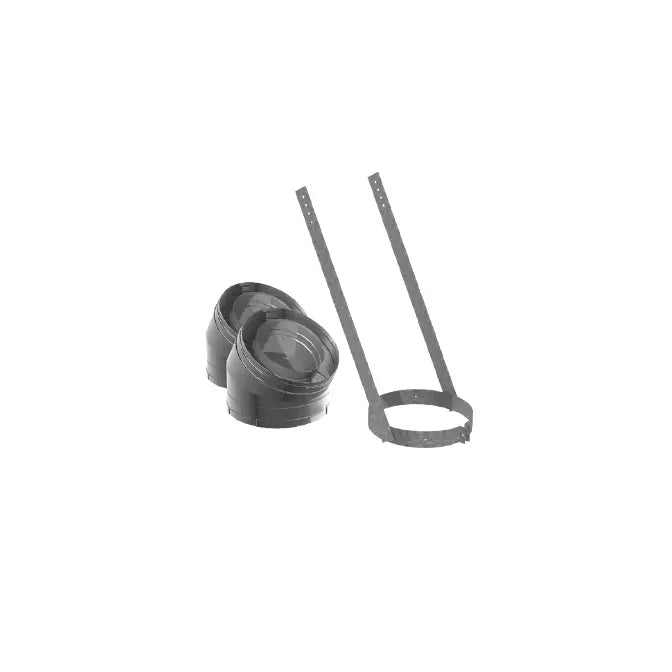

The 8” DuraChimney II Elbow Kits include two elbows and one elbow strap. They are used to offset around obstructions such as rafters, ridge poles, or joists. Offsets greater than 30° are not allowed. Elbows are not adjustable.

This product is a special order item and cannot be returned once it has been shipped.

Product Features

Double-Wall, Air-Cooled Safety

Stays cooler on the outside while maintaining a hot internal draft path—enhancing chimney performance and protecting surrounding framing.

Unitized, Lightweight Sections (Faster Installs)

Factory-built inner/outer walls arrive pre-assembled, eliminating the need for field assembly and reducing installation time and errors.

UL 103 / ULC S604 Class A Listing

Tested and listed for high-temperature solid-fuel use to meet North American safety standards.

High-Temperature Rating

Rated for continuous 1000°F flue gases; also tested for short-duration over-temperature events per Class A requirements.

Durable Stainless/Galvanized Construction

.016" 430 stainless steel inner wall with a .021" galvanized outer wall (stainless outer wall available by quote) for extended service life.

2" Clearance to Combustibles

Air-cooled design maintains the required 2-inch clearance for safe chase and framing layouts.

Professional Installation Required

DuraVent requires that all DuraChimney II components be installed by a qualified professional.

Product Specifications

Specification	Detail
Brand / Series	DuraVent® DuraChimney® II (DCA)
Component Type	30-Degree Elbow Kit
Inner Diameter (ID)	8"
Outer Diameter (OD)	12"
Overall Length / Angle	30 Degrees
Construction	.016" 430 stainless inner wall; .021" galvanized outer wall (stainless outer available by quote); 1.5" Air Gap Between Walls
Design	Double-wall, air-cooled; unitized (no field assembly of inner/outer walls)
Listing / Certification	UL 103; ULC S604 (Class A chimney)
Temperature Rating	1000°F continuous; short-duration higher-temp compliant per UL 103
Clearance to Combustibles	2" minimum
Fuel Compatibility	Wood (primary); also oil, coal, gas, where listed—follow the fireplace manufacturer’s instructions
Typical Application	Factory-built alternative to masonry chimney; fireplace/chimney chase installations
Finish	Galvanized outer (option: stainless outer by quote)
Joint / Connection	Twist-Lock Connection
Maintenance	Inspect annually; clean as needed per solid-fuel best practices
Warranty	Limited Lifetime
