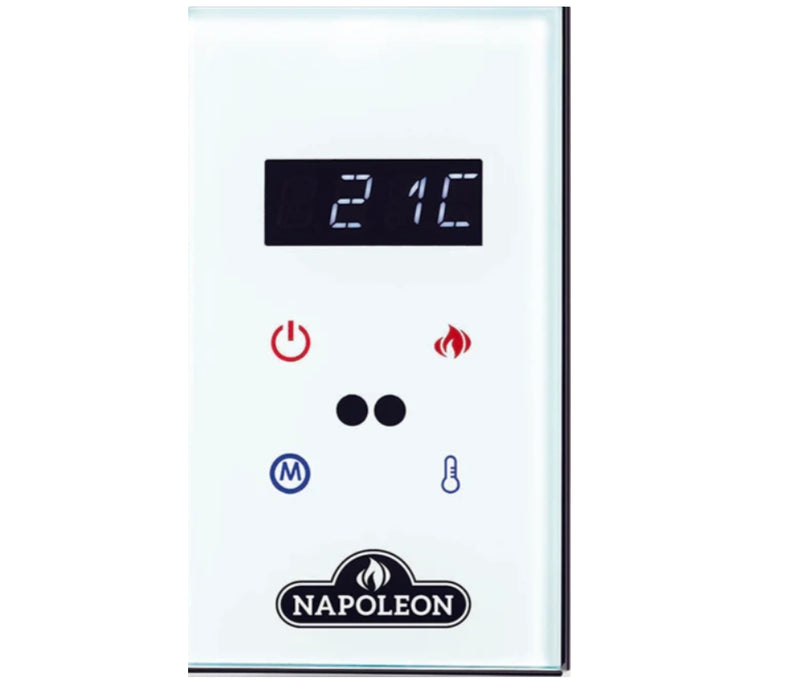

Napoleon Electric Wallmount Controller for Built-in Fireplaces with optional Black or White Cover
Seamless, Smart Control for Your Built-In Electric Fireplace
Upgrade your fireplace experience with the Napoleon W370-0317 Wall Mounted Controller—designed for convenient, stylish, and intuitive control of compatible electric fireplaces.
Key Features
- Works with multiple Napoleon built-in electric fireplaces
- Simple wall-mounted installation with magnetic glass cover
- Includes multiple heating and fan modes for full comfort control
- Thermostat feature with digital temperature settings
- Available in black or white finish
Product Features
Universal Compatibility
The W370-0317 is designed to work with several Napoleon built-in electric fireplaces, including:
NEFB36LCD-MF, NEFL65LCD-3SV, NEFB50AB, NEFB62AB, NEFB74AB, NEFB96AB, NEFB36H-MF, and NEFB42H-MF.
Easy Wall-Mounted Installation
Mount the controller anywhere within 20 feet of your fireplace for easy access. The included bracket and magnetic glass cover make for a clean, professional installation with minimal tools required.
Modern Aesthetic Design
Choose from optional black or white covers to complement your room décor. The sleek glass faceplate gives your control system a premium, minimalist look that matches Napoleon’s design language.
Complete Fireplace Control
Turn your fireplace on/off, adjust flame brightness, and switch between heating and fan modes using intuitive controls. The LED display ensures clear visibility of your selected settings at a glance.
Thermostat Functionality
Easily manage your comfort with the built-in thermostat. Adjust temperature from 18°C (64°F) to 27°C (82°F) in 1° increments, or switch between °C and °F settings with a 5-second hold.
Multiple Heating & Fan Modes
Choose from five operating modes for precise climate control:
- H-0: Heater & blower off
- FAN: Fan only
- H-1: Heater & blower on
- ECO: Energy-saving mode
- BST: Boost mode for rapid heating
Low-Voltage, Safe Operation
Engineered for low-voltage communication, the W370-0317 ensures safe operation. It should never be wired near power lines or electrical panels, in accordance with NEC safety standards.
Quick Access Functions
Enable or disable the heater function by holding the mode button for 3 seconds. “LOC” appears on the display when heating is locked—useful for safety or child protection.
Product Specifications
| Specification |
Details |
| Manufacturer |
Napoleon |
| Model Number |
W370-0317 |
| Product Type |
Electric Wall-Mounted Controller |
| Compatible Fireplaces |
NEFB36LCD-MF, NEFL65LCD-3SV, NEFB50AB, NEFB62AB, NEFB74AB, NEFB96AB, NEFB36H-MF, NEFB42H-MF |
| Control Range |
Up to 20 ft (6 m) |
| Mounting Type |
In-wall, recessed |
| Power Source |
Low-voltage cable connection |
| Cover Options |
Black or White glass finish |
| Display Type |
Digital LED |
| Functions |
On/Off, Flame Control, Fan Control, Heat Modes, Thermostat Adjustment |
| Temperature Range |
18°C (64°F) – 27°C (82°F) |
| Modes |
H-0, FAN, H-1, ECO, BST |
| Switch Between °C/°F |
Hold the button for 5 seconds |
| Material |
Tempered glass front with magnetic mount |
| Safety Compliance |
NEC compliant, low-voltage only |
| Dimensions |
Approx. 5.5” H × 3.5” W × 1” D |
| Installation Tools Required |
Phillips screwdriver, drywall saw, pencil |
| Warranty |
1-Year Limited Warranty |
| Manufacturer Location |
Wolf Steel Ltd., Barrie, Ontario, Canada |
Warranty
Napoleon One-Year Limited Warranty
Electrical components and wearable parts are covered, and Napoleon will provide replacement parts free of charge during the first year of standard warranty.
This covers: fan/heaters, motors, switches, nylon bearing components, remote controls, and LED lights.*
Light bulbs and fuses are NOT covered by the warranty. Any labour related to warranty repair is not covered.
* Construction of models vary. Warranty applies only to components included with your specific appliance.
