Empire Stove 5" Fresh Air Intake Kit for Archway Inserts (WA5IN)
An Optional 5" Outside Combustion Air Kit for the Empire Stove Archway 1700 and 2300 Wood Inserts

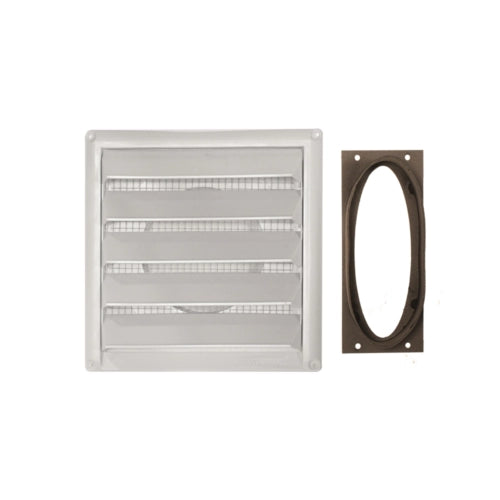

The Empire Stove WA5IN fresh air intake kit connects the Archway 1700 or Archway 2300 insert to outside combustion air through a 5" adapter mounted on either side of the unit.
Key Features
- 5" fresh air intake kit for the Archway 1700 and Archway 2300
- Installs on the right or left side of the insert
- Includes the intake adapter, two pipe clamps, and mounting screws
- Insulated HVAC-type flexible pipe (ULC S110 or UL 181 class 0 or 1) and outside wall termination not included
- Part number WA5IN
Product Features
Outside Combustion Air
Per the Archway installation manuals, the intake adapter mounts to the side of the insert with four screws, the flexible pipe secures to the adapter with one clamp, and the other end secures to an outside wall termination that must be installed outside the home. On the Archway 1700, a cover plate supplied in the user manual kit closes the unused side.
Fireplace Opening Allowance
If a fresh air intake is required, Empire recommends adding at least 4" to the width of the minimum masonry opening of the hearth.
Product Specifications
Compatibility
| Compatible Model |
Model Number |
Appliance Type |
| Archway 1700 |
WB17IN |
Wood Insert |
| Archway 2300 |
WB23IN |
Wood Insert |
General
| Feature |
Specification |
| Part Number |
WA5IN |
| Component Type |
Fresh air intake kit |
| Intake Diameter |
5" |
| Mounting |
Right or left side of the insert |
| Requirement |
Optional |
| Not Included |
Insulated HVAC-type flexible pipe (ULC S110 or UL 181 class 0 or 1) and outside wall termination |
Manufacturer Notes
- The Archway inserts are not approved for mobile home installation; this kit provides outside combustion air for masonry fireplace installations.
- Compatibility is as listed in the Empire Stove 2026 price sheet. Any installation must follow the instructions supplied with the component and the appliance installation manual.
About the Manufacturer
Who Is Empire Stove?
Empire Stove is the wood-burning stove, insert, and fireplace line of Empire Comfort Systems, Inc. of Belleville, Illinois. Its Gateway wood stoves, Archway wood inserts, and St. Clair wood fireplaces are made in North America and share a one-lever air control, a no-mess ash pan, and an air wash system designed for simple everyday operation.
Built to Last
Empire Stove appliances are constructed with thick 5/16" steel, lined with high-density firebricks, and fitted with a high heat ceramic baffle and high temperature ceramic glass, and they are backed by the Empire Limited Lifetime Warranty.
Certification and Support
Current Empire Stove wood-burning models meet the EPA 2020 emissions standard. Empire publishes installation and operation manuals, spec sheets, brochures, and test reports for each model, and supports owners through online product registration and its authorized dealer network.
