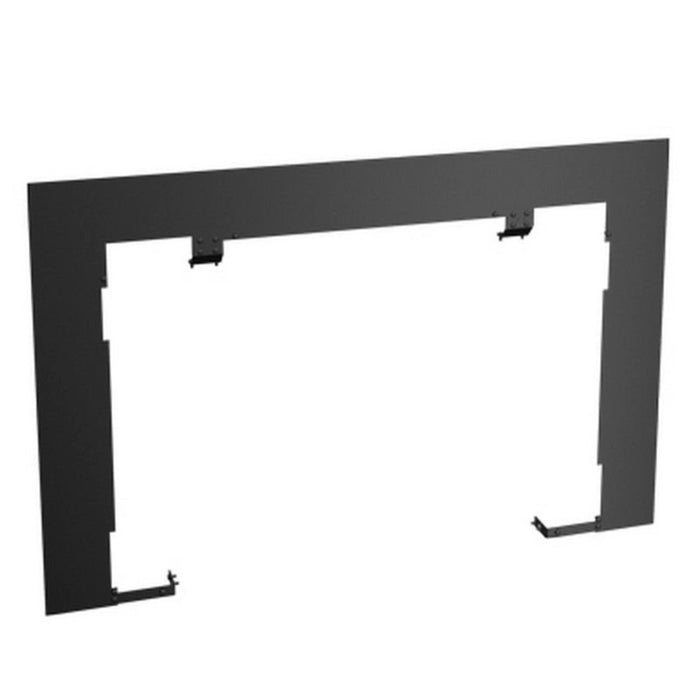

Osburn Matrix-I Faceplate Backing Plate Kit – AC01322 / AC01332
Complete Your Matrix-I Insert Installation with a Properly Sized Backing Plate
The Osburn Matrix-I Faceplate Backing Plate Kit provides structural support and a finished surround for your Matrix-I wood fireplace insert installation.
Key Features
- Designed for Osburn Matrix-I Fireplace Insert (OB02028)
- Two size options: 29" x 44" or 29" x 50"
- Required for projection kit installation
- OEM factory-engineered accessory
- Heavy-duty steel construction
- Ensures proper faceplate alignment
Product Features
Essential for Proper Faceplate Installation
The faceplate backing plate mounts directly to the convection air jacket and supports the cast iron faceplate during final installation.
It ensures:
- Secure mounting surface
- Flush alignment against the fireplace finish
- Professional finished appearance
Required for Projection Kit AC01323
If your installation requires the 2" or 4" projection kit (AC01323), one of these backing plate kits must be purchased separately to secure the projection kit.
Two Size Options for Fireplace Coverage
Choose the correct size based on your fireplace opening and desired coverage:
- AC01322 – 29" x 44"
- AC01332 – 29" x 50"
These dimensions refer to the overall panel size that finishes the masonry opening.
Precision Mounting Bracket System
The kit aligns with factory predrilled holes on the Matrix-I insert’s convection air jacket.
⚠️ Predrilled hole locations must not be altered to avoid overheating and maintain manufacturer compliance.
OEM Steel Construction for Long-Term Durability
Manufactured from durable steel, the backing plate:
- Resists warping under high heat
- Provides rigid support for faceplate components
- Maintains airflow clearances required by Osburn
Designed Specifically for Masonry Fireplace Installations
The Matrix-I is approved for installation inside an existing masonry fireplace. This backing plate ensures the insert integrates cleanly into:
- Brick fireplace surrounds
- Stone hearth installations
- Tiled fireplace facings
Product Specifications
Compatibility
| Specification |
Detail |
| Compatible Appliance |
Osburn Matrix-I Wood Fireplace Insert (OB02028) |
| Product Type |
Faceplate Backing Plate Kit |
| Installation Type |
Mounts to convection air jacket |
| Manufacturer |
Osburn (SBI) |
Available Sizes
| SKU |
Dimensions |
Application |
| AC01322 |
29" x 44" |
Standard masonry coverage |
| AC01332 |
29" x 50" |
Larger fireplace openings |
Construction & Materials
| Feature |
Detail |
| Material |
Heavy-duty steel |
| Finish |
Factory-coated |
| Fasteners Included |
Yes |
| Mounting Brackets |
Required (included) |
| Compatible Projection Kit |
AC01323 (sold separately) |
